Description

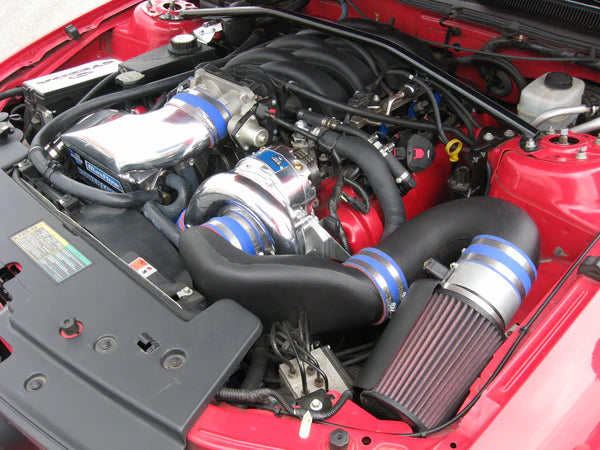

Tuner Kit, 2007-2009 Mustang GT w/V-2 Ti & Charge Cooler, Satin Finish
2007-2009 Ford 4.6 3V Mustang GT Tuner Kits
2005-2008:
Complete systems and tuner kits are available. The High Output complete systems boost stock 2005-2008 vehicles to 462HP.
Tuner Kits - Included components and Features
- V-3 Si-Trim compressor with 3.80" drive pulley (Std. Output), 3.60" drive pulley (High Output)
- Manifold boost pressure: 8 psi (Std. Output), 10 psi (High Output) @ redline on stock engine
- High contact ratio, precision helical gear-driven supercharger provides nearly silent operation and unmatched reliability
- Technologically advanced, high-efficiency computer-designed impeller and housing design developed in Vortech's supercharger test cell for optimum performance
- Air inlet assembly includes:
- High-flow quality roto-molded ducts
- Silicone sleeves with stainless steel clamps
- 98 mm MAF meter housing and filter with heat shield
- Includes replacement engine coolant pipes and hose assemblies
- Billet aluminum supercharger mounting bracket assembly includes idlers, drive belt and all mounting hardware
- Integrated air/water, dual-pass charge cooler configuration allows for additional horsepower gains and features maintenance-free design(High output systems)
- Oil feed and oil drain assemblies (V-2 and V-7 models) deliver the best possible lubrication and cooling for the supercharger, even under sustained boost conditions
- Inlet and discharge duct connections utilize heat resistant silicon sleeves and premium quality stainless steel clamps
Centrifugal superchargers easily make more pressure and flow than a roots type blower and are much more efficient. Read our Roots vs Centrifugal comparison to see the numbers.
Hardware kit: 4FU100-001 includes spare/replacement bolts and other hardware for supercharger mounting.
Tuner Kits and Supercharger Options
Tuner kits are the same as complete systems except without the fuel system upgrades or ECM reprogramming. This allows for custom tuning and fuel modifications that the custom tuner or racer may prefer. Vortech has supercharger options for various types of racing or boost level. For continued use, such as road racing, the V-2 series superchargers share the engine's oiling system. This approach is more suitable for continued boost conditions and allows for the addition of an oil cooler or filter. Call the Vortech Tech Line for complete information on the many upgrades and options available.
Installation
Installation time is rated at approximately 8-10 hours (Std. Output) or 12-14 hours (High Output).
CARB Compliance
Tuner Kits are NOT CARB legal, and are legal in California only for racing vehicles which may never be used upon a highway (off-road use only). Installation of this part on a vehicle driven on public roads and highways is likely to violate U.S Law regarding motor vehicle emissions.
Warranty Information:
1-Year Supercharger Limited Warranty
Included with all superchargers except race/heavy-duty models. More information (PDF).
3-Year Supercharger Limited Warranty
Available with V-3 superchargers (if purchased as part of a complete street-legal system) for an additional $50.00. Note: Tuner kits are only eligible for a 1-Year Warranty. More information (PDF).
