Description

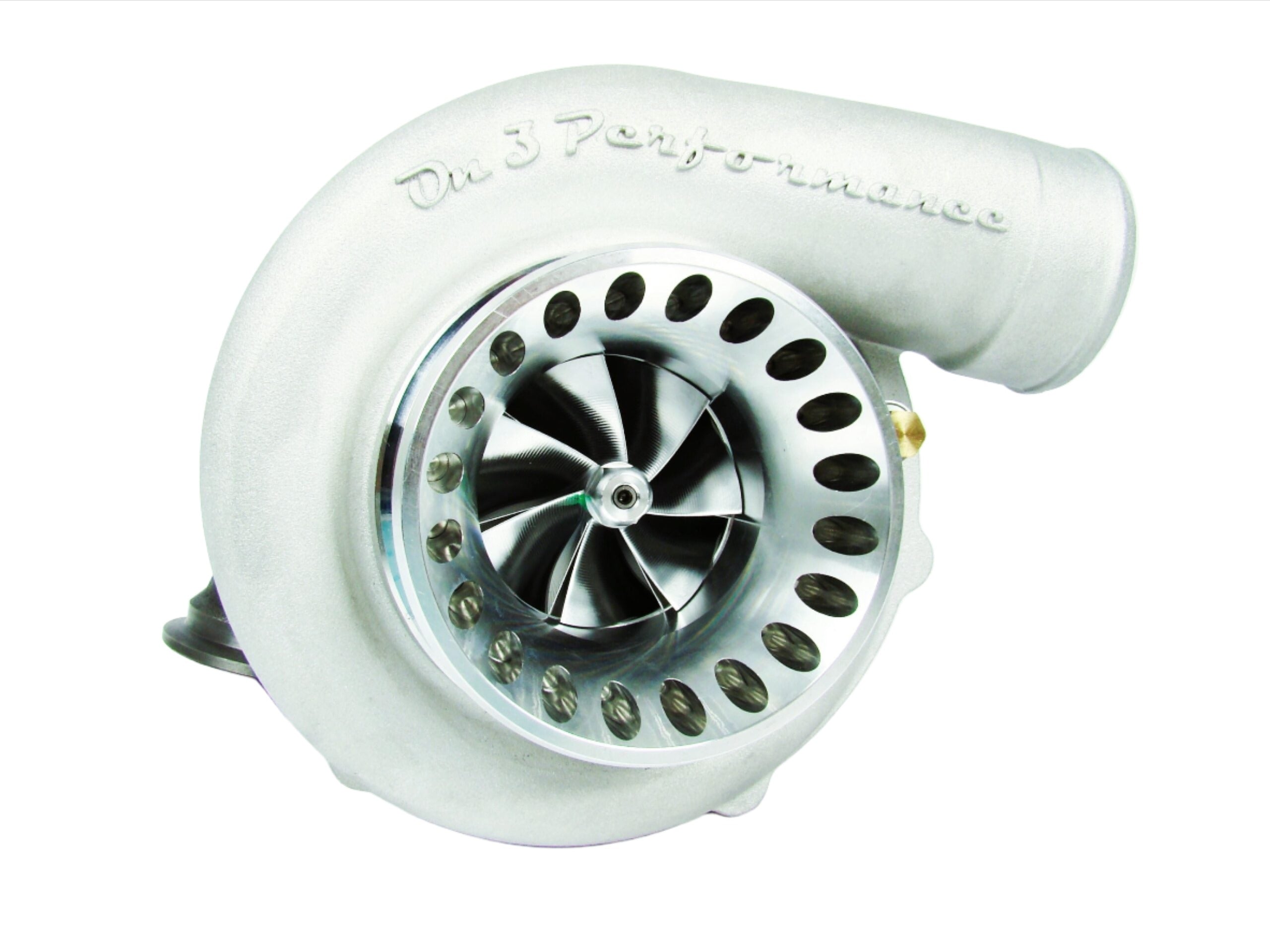

On 3 Performance *Water Cooled* 6766x Turbocharger -Billet Wheel / Dual Ceramic Ball Bearing
614-439-0057
On 3 Performance is currently stocking and shipping daily the newest addition to our turbo product line. This turbo will be capable of supporting around 800hp depending on the application. Our primary application here, we run them on our Twin Turbo Low Mount kits and make a very wide spectrum of power from 500-1300+hp. They are very quick into boost, very reliable when properly maintained and will make great power As far as applications go, this turbocharger is a great unit for those building 1.6-4.0L engines on a single turbo application. Also for those building Twin Turbo applications, this is exactly what most of our new builds revolve around and have the potential to reach 1300+. You don't have to spend $2,000+ anymore for a water cooled turbo. You can spend a fraction with us on a proven turbocharger that we back up with solid performance data and time tested. This will require grease to be added every 3k miles or so depending on use and turbo location. We sell the specific grease needed and this can be pumped in using a standard mini grease gun. Cartridges will be sold separately. Included Standard: - On 3 Performance 2nd Gen 6766x Turbocharger - Water Cooled Only - Dual Ceramic Ball Bearing - Cnc Billet Wheel -
Anti Surge Compressor Housing, 4 inlet / 2.5 outlet - Exhaust housing: T3 V-Band Inlet / Outlet Design, 3.0outlet
Turbo Specs
Cold Side: Compressor Wheel Inducer 67mm - CNC Machined Billet Wheel 4.0 Inlet and 2.5 Compressor Outlet
Inducer- 67mm
Exducer- 83mm
Exhaust Side:
Exhaust Housing:
.82ar T3 vband housing, .68ar Vband inlet, .96ar Vband inlet, .81ar T4 3.0" V band Outlet
Inducer- 74mm
Exducer- 66mm
