On3 Performance

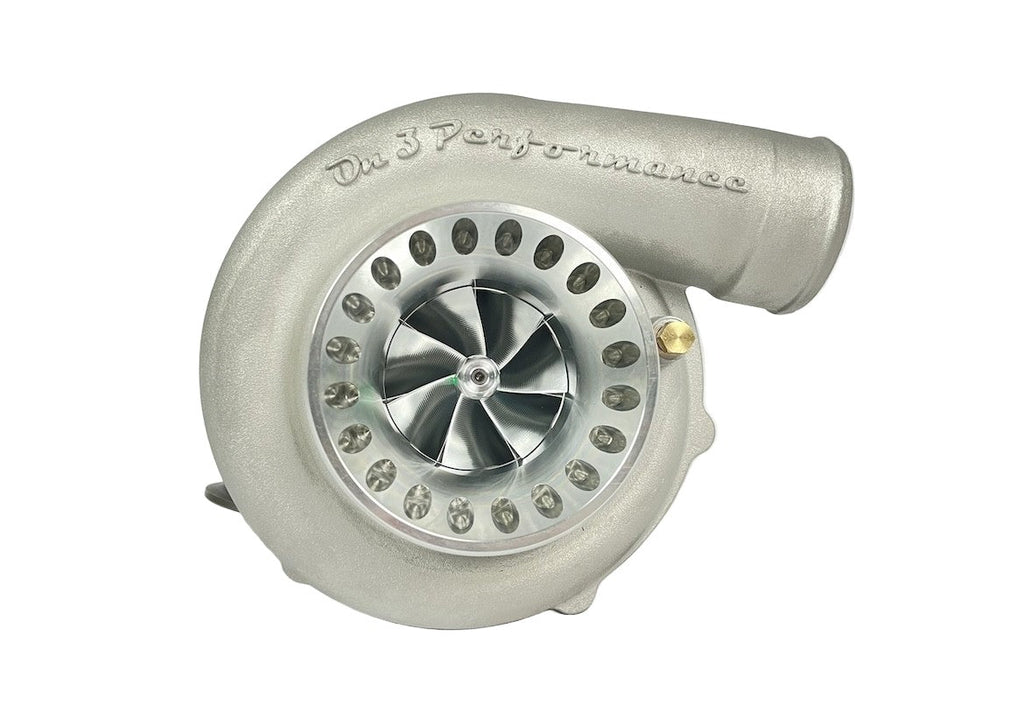

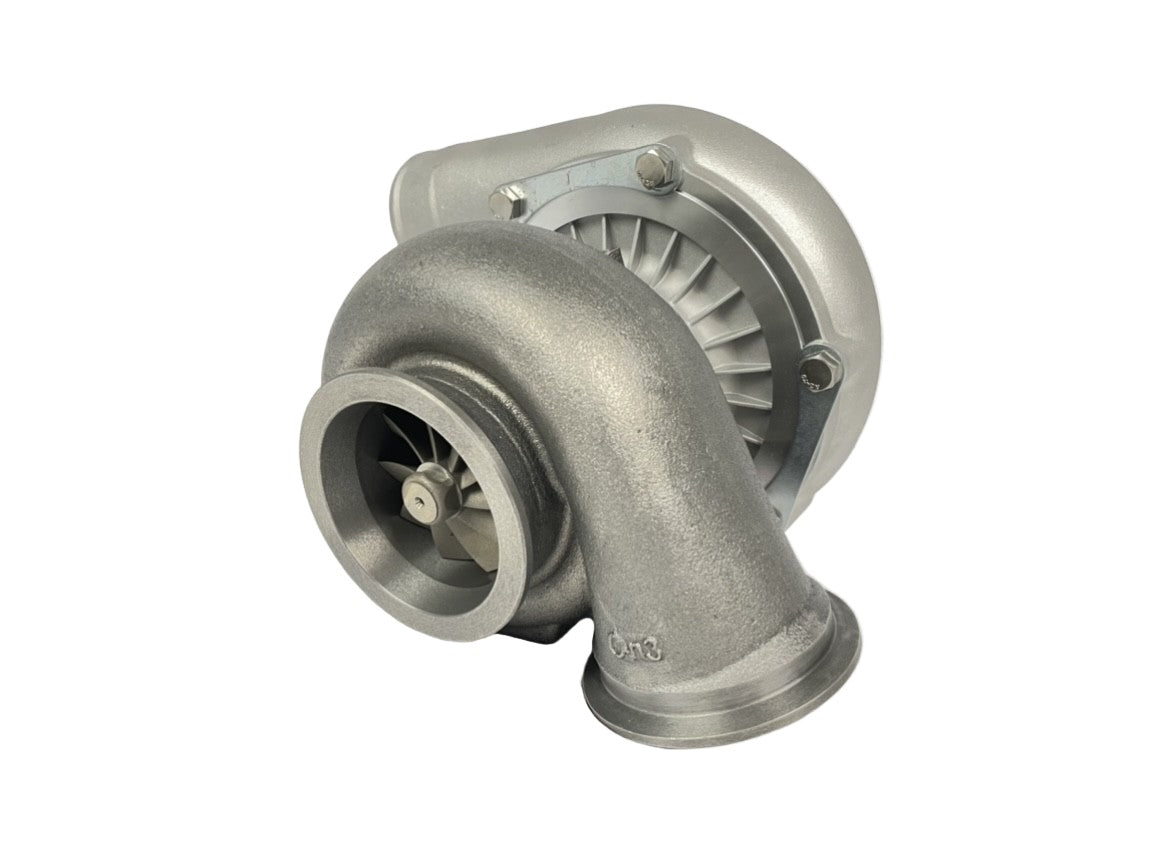

64/66 CNC BILLET WHEEL Turbocharger
HP Range: �500-950hp
This is a brand new release turbocharger and one of our new premium line turbochargers. We are working hard to bring better quality to the market for less of your hard earned money. With this new 2nd Generation line, each of these models will come standard with our new CNC Billet compressor wheel. Now the only selection you will need to make is your bearing structure. Each of these units will come with our journal bearing configuration, you can select to opt for the dual ceramic ball bearing if you choose.
Compressor Specifications:
Inducer: 63.80mm
Exducer: 82.64mm
Extended Tip: 86.30mm
Compressor Inlet: 4" slip fit
Compressor Outlet: 2.5" slip fit
Turbine Specifications:
Inducer: 74mm
Exducer: 66.10mm
A/R: 0.68, .96ar options

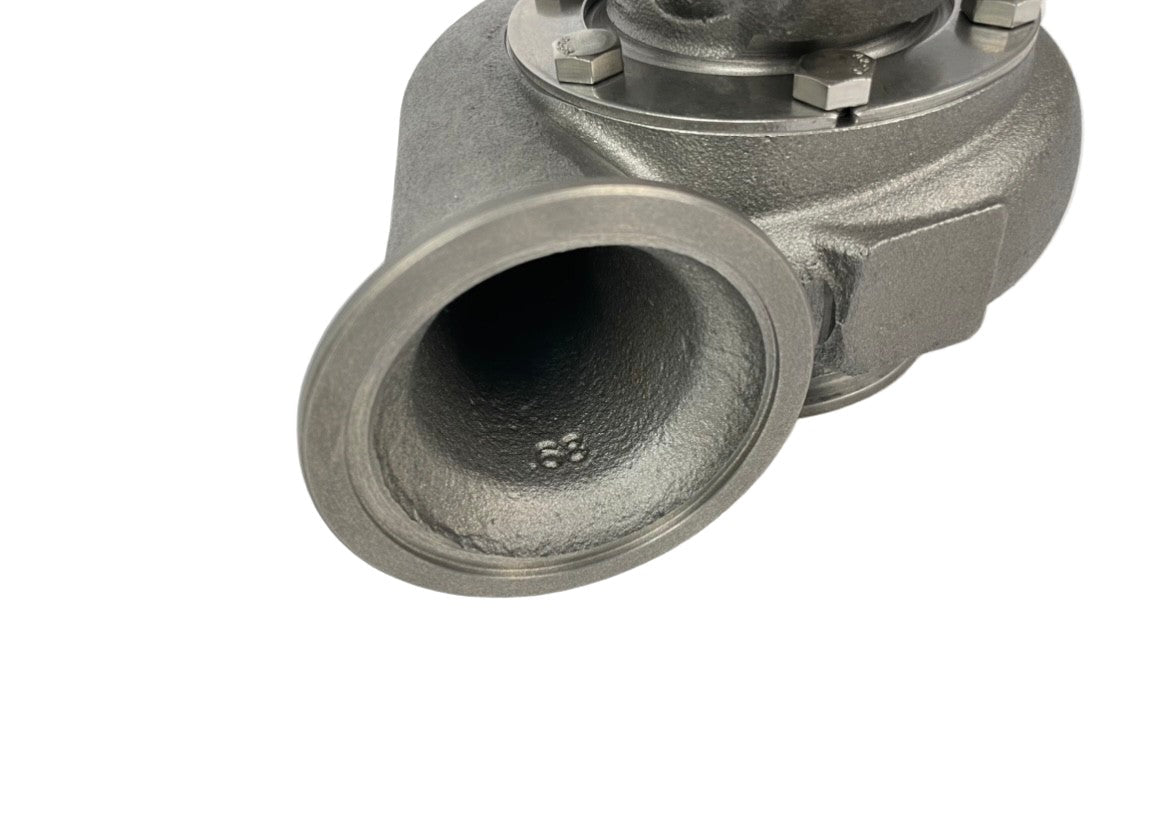

Turbine Inlet Flange: 2.25 V-Band
Turbine Outlet Flange: 3.0 V-Band
** Recommended for 1.8L-6.0L **
